1.Overview
The YZT-CJ-0510A Laser Rangefinder is an eye-safe laser rangefinder within the optoelectronic system, capable of detecting target distances and transmitting the measured distance to the host computer via serial communication.
2.Structural Composition and Main Performance Indicators

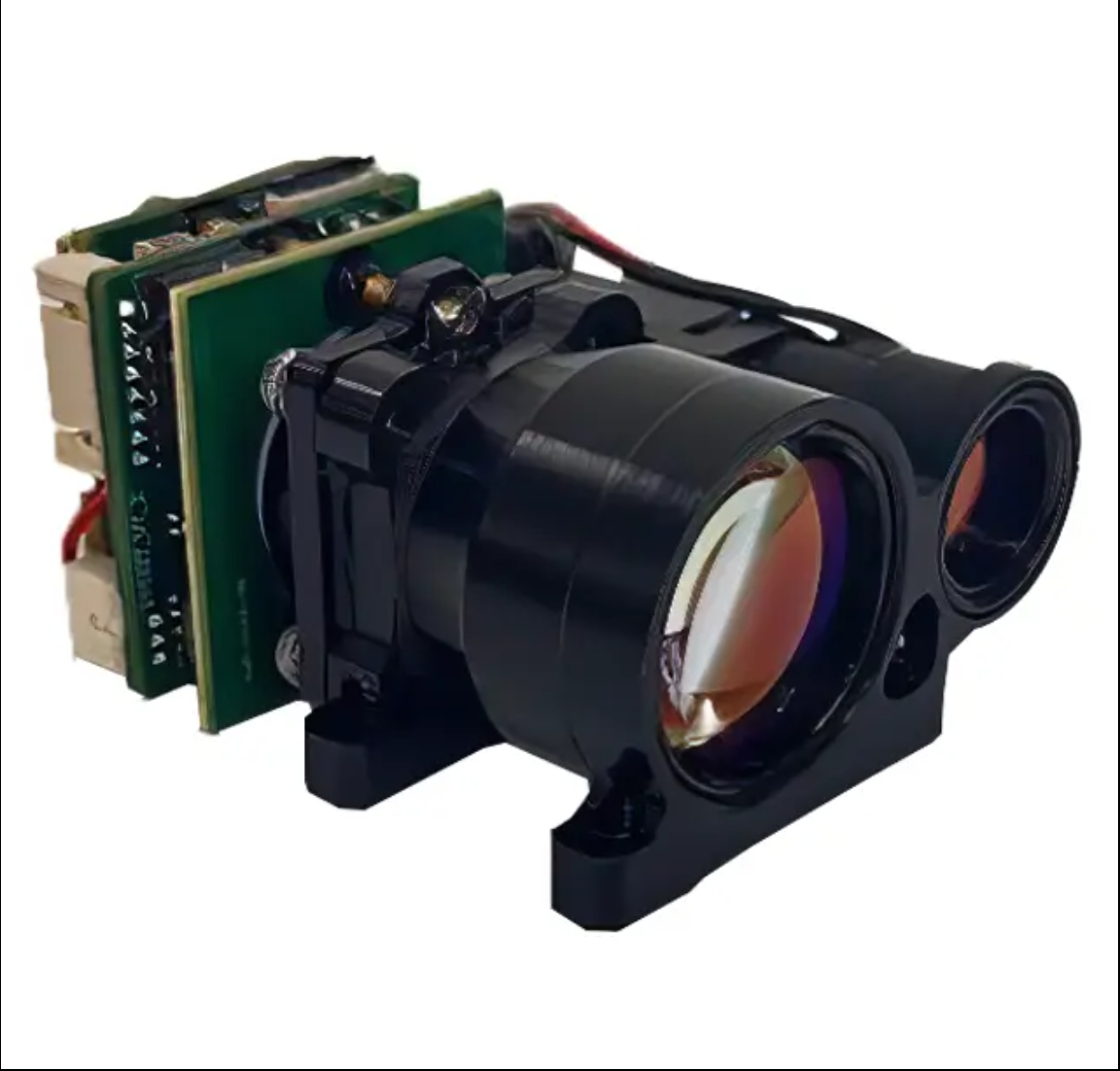

The YZT-CJ-0510A Laser Rangefinder consists of a laser, a transmission optical system, a reception optical system, and a control circuit. The main performance characteristics are as follows:
2.1 Ranging capacity
Visibility under visibility conditions is not less than 8km, diffuse reflectance ≥0.3, humidity ≤80%, the vehicle (2.3m×2.3m target) ranging distance ≥5km.
2.2 Function
a) single ranging and continuous ranging;
b) Range strobe, front and rear target indication;
c) Self-test function.
2.3 Performance
a. Wavelength: 1535nm±5nm;
b. Laser divergence Angle: ≤0.5mrad;
c. Continuous ranging frequency: 1~10Hz adjustable;
d. Ranging accuracy: ≤±2m (RMS);
e. Accuracy: ≥98%;
f. Minimum measuring range: ≤20m;
g. Ranging resolution: ≤30m (multi-target);
h. Power supply voltage: DC9V ~ 16V; (Customizable)
i. Weight: ≤55g;
j. Power: average power consumption ≤1.5W (1Hz operation), peak power consumption ≤5W;
k. Size: ≤55mm×41mm×26mm;
l. Working temperature: -40℃ ~ +60℃;
m. Storage temperature: -50℃ ~ +70℃;
2.4 Interface
Communication Interface: RS422, 115200bps, wiring definition as shown in Table 1;
Table 1: Wiring Definition for 8P Socket
Serial No. Definition wire color Remarks
1 RS422 RX+ Brown RS422 Receive (+)
2 RS422 RX- Blue RS422 Receive (-)
3 RS422 TX- Yellow RS422 Transmit (-)
4 RS422 TX+ Purple RS422 Transmit (+)
5 GND White Communication Interface Ground
6 +12V Red Power Supply
7 GND Black Power Supply Ground
8 Reserved Blank Reserved
2.5 Dimension
For detailed information, please refer to the product's three-dimensional envelope and assembly drawing.
2.6 User Precautions
The laser emitted by this rangefinder is 1535nm, which is safe for human eyes. Although it is an eye-safe wavelength, it is advised not to look directly into the laser.
When adjusting the parallelism of the optical axis, be sure to cover the receiving lens to avoid permanent damage to the detector due to excessively strong echoes.
This rangefinder module is not airtight. Ensure that the relative humidity of the environment is below 80% and maintain a clean and sanitary environment to prevent damage to the laser.
The range of the rangefinder is related to atmospheric visibility and the nature of the target. Range will be reduced in fog, rain, and sandstorms. Targets like green tree clusters, white walls, and exposed limestone have better reflectivity and can increase range. Additionally, increasing the angle of the laser beam to the target will reduce the range.
Do not emit lasers at highly reflective targets such as glass or white walls within 20 meters to avoid echo overstrength and damage to the APD detector.
Do not plug or unplug cables while the device is powered on.
Ensure the correct polarity of the power supply connection to avoid permanent damage to the equipment.
Product Description:
The Laser Ranging product features a laser divergence angle of ≤ 0.5mrad, which ensures precision and accuracy in measuring distances. This feature makes it an ideal tool for use in an Automatic Laser Marking Machine where precision is critical. The sensor can measure distances quickly and accurately without the need for manual intervention, making it an excellent tool for increasing productivity and efficiency in industrial settings.
The Industrial Laser Distance Sensor is designed to be discreet in operation, with no red flash, which makes it an ideal tool for Stealth Ranging. This feature makes it useful in covert operations where it is necessary to measure distances without drawing attention to the activity. This feature also makes it an essential tool for law enforcement agencies and military personnel.
The Laser Ranging product is a versatile tool that can be used in a wide range of industries, including construction, agriculture, and manufacturing. It is an essential tool for engineers, architects, and surveyors who need to take accurate measurements for their projects. The sensor is easy to use and can be operated by individuals with little or no technical knowledge.
In conclusion, the Industrial Laser Distance Sensor is a reliable and efficient tool that can be used in a wide range of industrial applications. Its precision and accuracy make it an ideal tool for use in Automatic Laser Marking Machines, while its low power consumption feature makes it a cost-effective tool for industrial use. Its compatibility with most voltage supplies makes it a versatile tool that can be used in different industrial settings. The Laser Ranging product is an excellent investment for businesses that require accurate and reliable distance measurements.
Features:
- Product Name: Laser Ranging
- Voltage supply: DC6 ~ 36
- Advantage: Eye-safe
- Weight: ≤56g
- Power: Low Power Consumption
- Laser divergence angle: ≤ 0.5mrad
- Features:
- High Precision Distance Sensor
- Infrared Laser Pointer
- Industrial Laser Distance Sensor
Technical Parameters:
| Product Attribute | Value |
| Product Name | High Precision Laser Distance Sensor |
| Weight | ≤56g |
| Operating Temperature | -40°C To 60°C |
| Feature | Small Size |
| Frequency | 1 Hz |
| Voltage supply | DC6 ~ 36 |
| Advantage | Eye-safe |
| Warranty Years | 1 Year |
| Measurement Range | 20~5000m |
| Function | Measuring Distance |
| Resolution | 0.1 Meter |
| Application | Automatic Laser Marking Machine |
Applications:
The FOVA YZT-CJ-0510A Industrial Laser Distance Sensor is a reliable and efficient tool that is designed for surveying, mapping, and geodesy applications. This laser ranging product has a resolution of 0.1 meter and an accuracy of ±1 meter, which makes it a precise and effective measuring tool. Additionally, the beam divergence of the Industrial Laser Distance Sensor is less than 1 Mrad, which means that it is an eye-safe tool to use.
The FOVA YZT-CJ-0510A Industrial Laser Distance Sensor is a versatile product that can be used in a range of different occasions and scenarios. For example, it can be used in the construction industry for building and structural assessments, or in the forestry industry for measuring the height and distance of trees. It can also be used in the mining industry for measuring the depth of mines, or in the transportation industry for measuring the distance between vehicles.
The FOVA YZT-CJ-0510A Industrial Laser Distance Sensor is an ideal product for those who require a high precision distance sensor for their work. Its eye-safe beam divergence and impressive accuracy make it a reliable tool to use in a range of different applications. If you are looking for an industrial laser distance sensor that is both reliable and efficient, then the FOVA YZT-CJ-0510A Industrial Laser Distance Sensor is the product for you.
FAQ:
Here are some frequently asked questions and answers for the FOVA Laser Ranging product:
Q: What is the brand name of this laser ranging product?
A: The brand name is FOVA.
Q: What is the model number of this product?
A: The model number is YZT-CJ-0510A.
Q: Where is this product manufactured?
A: This product is manufactured in SHENZHEN.
Q: Does this product have any certification?
A: Yes, this product has CE certification.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 10PCS.
Q: What are the packaging details for this product?
A: The packaging details are 56X27X41CM.
Q: How long is the delivery time for this product?
A: The delivery time is 7-15 working days.
Q: What are the payment terms for this product?
A: The payment terms are T/T.
Q: What is the supply ability of this product?
A: The supply ability is 100000Pcs/Month.
